OpenLiteSpeed (OLS) with Redis. Fast Cache for WordPress Sites.

Managing a web server requires an understanding of the components that make up its architecture. Each element plays a crucial role in delivering content to users quickly and reliably. This article provides an in-depth analysis of a modern server configuration based on OpenLiteSpeed (OLS), explaining its fundamental mechanisms, its collaboration with the Redis caching system, and its methods of communication with external applications.

OpenLiteSpeed (OLS) – The System’s Core

The foundation of every website is the web server—the software responsible for receiving HTTP requests from browsers and returning the appropriate resources, such as HTML files, CSS, JavaScript, or images.

What is OpenLiteSpeed?

OpenLiteSpeed (OLS) is a high-performance, lightweight, open-source web server developed by LiteSpeed Technologies. Its key advantage over traditional servers, such as Apache in its default configuration, is its event-driven architecture.

• Process-based model (e.g., Apache prefork): A separate process or thread is created for each simultaneous connection. This model is simple, but with high traffic, it leads to significant consumption of RAM and CPU resources, as each process, even if inactive, reserves resources.
• Event-driven model (OpenLiteSpeed, Nginx): A single server worker process can handle hundreds or thousands of connections simultaneously. It uses non-blocking I/O operations and an event loop to manage requests. When a process is waiting for an operation (e.g., reading from a disk), it doesn’t block but instead moves on to handle another connection. This architecture provides much better scalability and lower resource consumption.

Key Features of OpenLiteSpeed

OLS offers a set of features that make it a powerful and flexible tool:

• Graphical Administrative Interface (WebAdmin GUI): OLS has a built-in, browser-accessible admin panel that allows you to configure all aspects of the server—from virtual hosts and PHP settings to security rules—without needing to directly edit configuration files.
• Built-in Caching Module (LSCache): One of OLS’s most important features is LSCache, an advanced and highly configurable full-page cache mechanism. When combined with dedicated plugins for CMS systems (e.g., WordPress), LSCache stores fully rendered HTML pages in memory. When the next request for the same page arrives, the server delivers it directly from the cache, completely bypassing the execution of PHP code and database queries.
• Support for Modern Protocols (HTTP/3): OLS natively supports the latest network protocols, including HTTP/3 (based on QUIC). This provides lower latency and better performance, especially on unstable mobile connections.
• Compatibility with Apache Rules: OLS can interpret mod_rewrite directives from .htaccess files, which is a standard in the Apache ecosystem. This significantly simplifies the migration process for existing applications without the need to rewrite complex URL rewriting rules.

Redis – In-Memory Data Accelerator

Caching is a fundamental optimisation technique that involves storing the results of costly operations in a faster access medium. In the context of web applications, Redis is one of the most popular tools for this task.

What is Redis?

Redis (REmote Dictionary Server) is an in-memory data structure, most often used as a key-value database, cache, or message broker. Its power comes from the fact that it stores all data in RAM, not on a hard drive. Accessing RAM is orders of magnitude faster than accessing SSDs or HDDs, as it’s a purely electronic operation that bypasses slower I/O interfaces.

In a typical web application, Redis acts as an object cache. It stores the results of database queries, fragments of rendered HTML code, or complex PHP objects that are expensive to regenerate.

How Do OpenLiteSpeed and Redis Collaborate?

The LSCache and Redis caching mechanisms don’t exclude each other; rather, they complement each other perfectly, creating a multi-layered optimisation strategy.

Request flow (simplified):

1. A user sends a request for a dynamic page (e.g., a blog post).
2. OpenLiteSpeed receives the request. The first step is to check the LSCache.
   • LSCache Hit: If an up-to-date, fully rendered version of the page is in the LSCache, OLS returns it immediately. The process ends here. This is the fastest possible scenario.
   • LSCache Miss: If the page is not in the cache, OLS forwards the request to the appropriate external application (e.g., a PHP interpreter) to generate it.
3. The PHP application begins building the page. To do this, it needs to fetch data from the database (e.g., MySQL).
4. Before PHP executes costly database queries, it first checks the Redis object cache.
   • Redis Hit: If the required data (e.g., SQL query results) are in Redis, they are returned instantly. PHP uses this data to build the page, bypassing communication with the database.
   • Redis Miss: If the data is not in the cache, PHP executes the database queries, fetches the results, and then saves them to Redis for future requests.
5. PHP finishes generating the HTML page and returns it to OpenLiteSpeed.
6. OLS sends the page to the user and, at the same time, saves it to the LSCache so that subsequent requests can be served much faster.

This two-tiered strategy ensures that both the first and subsequent visits to a page are maximally optimised. LSCache eliminates the need to run PHP, while Redis drastically speeds up the page generation process itself when necessary.

Delegating Tasks – External Applications in OLS

Modern web servers are optimised to handle network connections and deliver static files (images, CSS). The execution of application code (dynamic content) is delegated to specialised external programmes. This division of responsibilities increases stability and security.

OpenLiteSpeed manages these programmes through the External Applications system. The most important types are described below:

• LSAPI Application (LiteSpeed SAPI App): The most efficient and recommended method of communication with PHP, Python, or Ruby applications. LSAPI is a proprietary, optimised protocol that minimises communication overhead between the server and the application interpreter.
• FastCGI Application: A more universal, standard protocol for communicating with external application processes. This is a good solution for applications that don’t support LSAPI. It works on a similar principle to LSAPI (by maintaining permanent worker processes), but with slightly more protocol overhead.
• Web Server (Proxy): This type configures OLS to act as a reverse proxy. OLS receives a request from the client and then forwards it in its entirety to another server running in the background (the “backend”), e.g., an application server written in Node.js, Java, or Go. This is crucial for building microservices-based architectures.
• CGI Application: The historical and slowest method. A new application process is launched for each request and is closed after returning a response. Due to the huge performance overhead, it’s only used for older applications that don’t support newer protocols.

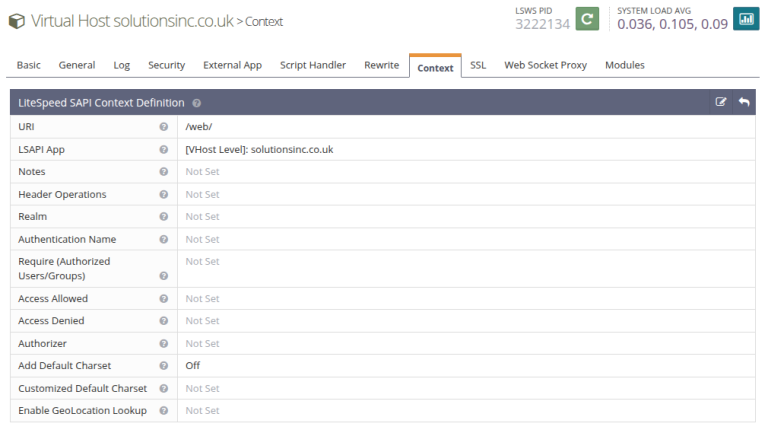

OLS routes traffic to the appropriate application using Script Handlers, which map file extensions (e.g., .php) to a specific application, or Contexts, which map URL paths (e.g., /api/) to a proxy type application.

Communication Language – A Comparison of SAPI Architectures

SAPI (Server Application Programming Interface) is an interface that defines how a web server communicates with an application interpreter (e.g., PHP). The choice of SAPI implementation has a fundamental impact on the performance and stability of the entire system.

The Evolution of SAPI

1. CGI (Common Gateway Interface): The first standard. Stable, but inefficient due to launching a new process for each request.
2. Embedded Module (e.g., mod_php in Apache): The PHP interpreter is loaded directly into the server process. This provides very fast communication, but at the cost of stability (a PHP crash causes the server to crash) and security.
3. FastCGI: A compromise between performance and stability. It maintains a pool of independent, long-running PHP processes, which eliminates the cost of constantly launching them. Communication takes place via a socket, which provides isolation from the web server.
4. LSAPI (LiteSpeed SAPI): An evolution of the FastCGI model. It uses the same architecture with separate processes, but the communication protocol itself was designed from scratch to minimise overhead, which translates to even higher performance than standard FastCGI.

SAPI Architecture Comparison Table

Comparison of Communication Sockets

Communication between processes (e.g., OLS and Redis, or OLS and PHP processes) occurs via sockets. The choice of socket type affects performance.

For local communication, UDS is a more efficient solution because it bypasses the entire operating system network stack, which reduces latency and CPU overhead. This is why it’s preferred in optimised configurations for connections between OLS, Redis, and LSAPI processes.

Practical Implementation and Management

To translate theory into practice, let’s analyse a real server configuration for the virtual host solutionsinc.co.uk.

5.1 Analysis of the solutionsinc.co.uk Configuration Example

1. External App Definition:
   • In the “External App” panel, a LiteSpeed SAPI App named solutionsinc.co.uk has been defined. This is the central configuration point for handling the dynamic content of the site.
   • Address: UDS://tmp/lshttpd/solutionsinc.co.uk.sock. This line is crucial. It informs OLS that a Unix Domain Socket (UDS) will be used to communicate with the PHP application, not a TCP/IP network socket. The .sock file at this path is the physical endpoint of this efficient communication channel.
   • Command: /usr/local/lsws/lsphp84/bin/lsphp. This is the direct path to the executable file of the LiteSpeed PHP interpreter, version 8.4. OLS knows it should run this specific programme to process scripts.
   • Other parameters, such as LSAPI_CHILDREN = 50 and memory limits, are used for precise resource and performance management of the PHP process pool.

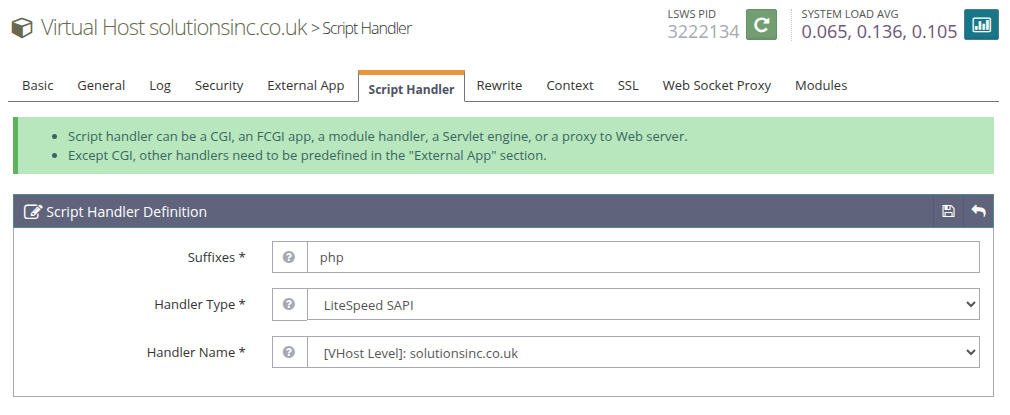

2. Linking with PHP Files (Script Handler):
   • The application definition alone isn’t enough. In the “Script Handler” panel, we tell OLS when to use it.
   • For the .php suffix (extension), LiteSpeed SAPI is set as the handler.
   • [VHost Level]: solutionsinc.co.uk is chosen as the Handler Name, which directly points to the application defined in the previous step.
   • Conclusion: From now on, every request for a file with the .php extension on this site will be passed through the UDS socket to one of the lsphp84 processes.

This configuration is an excellent example of an optimised and secure environment: OLS handles the connections, while dedicated, isolated lsphp84 processes execute the application code, communicating through the fastest available channel—a Unix domain socket.

5.2 Managing Unix Domain Sockets (.sock) and Troubleshooting

The .sock file, as seen in the solutionsinc.co.uk.sock example, isn’t a regular file. It’s a special file in Unix systems that acts as an endpoint for inter-process communication (IPC). Instead of communicating through the network layer (even locally), processes can write to and read data directly from this file, which is much faster.

When OpenLiteSpeed launches an external LSAPI application, it creates such a socket file. The PHP processes listen on this socket for incoming requests from OLS.

Practical tip: A ‘Stubborn’ .sock file

Sometimes, after making changes to the PHP configuration (e.g., modifying the php.ini file or installing a new extension) and restarting the OpenLiteSpeed server (lsws), the changes may not be visible on the site. This happens because the lsphp processes may not have been correctly restarted with the server, and OLS is still communicating with the old processes through the existing, “old” .sock file.

In such a situation, when a standard restart doesn’t help, an effective solution is to:

1. Stop the OpenLiteSpeed server.
2. Manually delete the relevant .sock file, for example, using the terminal command: rm /tmp/lshttpd/solutionsinc.co.uk.sock
3. Restart the OpenLiteSpeed server.

After restarting OLS, not finding the existing socket file, it will be forced to create a new one. More importantly, it will launch a new pool of lsphp processes that will load the fresh configuration from the php.ini file. Deleting the .sock file acts as a hard reset of the communication channel between the server and the PHP application, guaranteeing that all components are initialised from scratch with the current settings.

Summary

The server configuration presented is a precisely designed system in which each element plays a vital role.

• OpenLiteSpeed acts as an efficient, event-driven core, managing connections.
• LSCache provides instant delivery of pages from the full-page cache.
• Redis acts as an object cache, drastically accelerating the generation of dynamic content when needed.
• LSAPI UDS creates optimised communication channels, minimising overhead and latency.

An understanding of these dependencies allows for informed server management and optimisation to achieve maximum performance and reliability.
